Connect the Buzzer or Speaker

Connect the Buzzer or Speaker

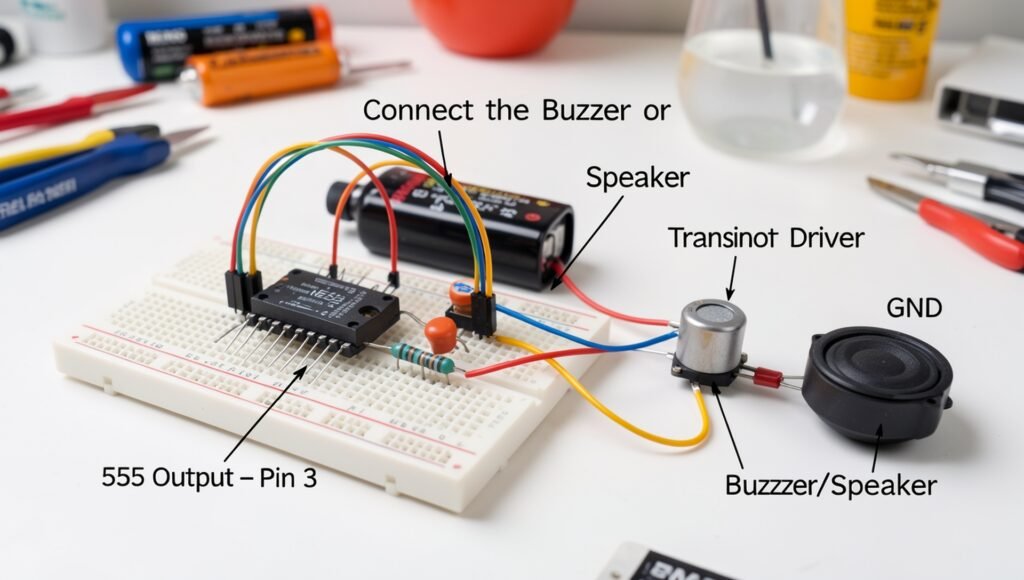

Connect the output of the 555 timer to a suitable buzzer or small speaker so that the electrical pulses generated by the timer can be converted into an audible sound. In a typical 555 timer oscillator circuit, the output is taken from Pin 3. Connect this output to the positive input of an appropriate low-voltage buzzer or to the input side of a small speaker circuit. Make sure the speaker or buzzer voltage and current ratings are compatible with the power supply and 555 timer circuit.

For a small, low-current buzzer, the 555 timer output may be able to drive it directly, depending on the particular buzzer and circuit design. Connect the other terminal of the buzzer to the appropriate supply or ground connection according to its type and the circuit diagram. Keep the wires short and secure, and double-check the polarity when using a polarized buzzer. Do not connect a speaker directly if it requires more current than the 555 timer can safely provide.

If the buzzer or speaker requires additional driving current, add a suitable transistor driver stage between the 555 timer and the sound-producing device. The 555 output can drive the transistor through an appropriate base or gate resistor, while the transistor supplies the higher current required by the buzzer or speaker. For an inductive buzzer, include suitable protection such as a flyback diode when required by the device. After completing the connections, inspect the circuit carefully for loose wires, reversed components, and accidental short circuits before applying power.
